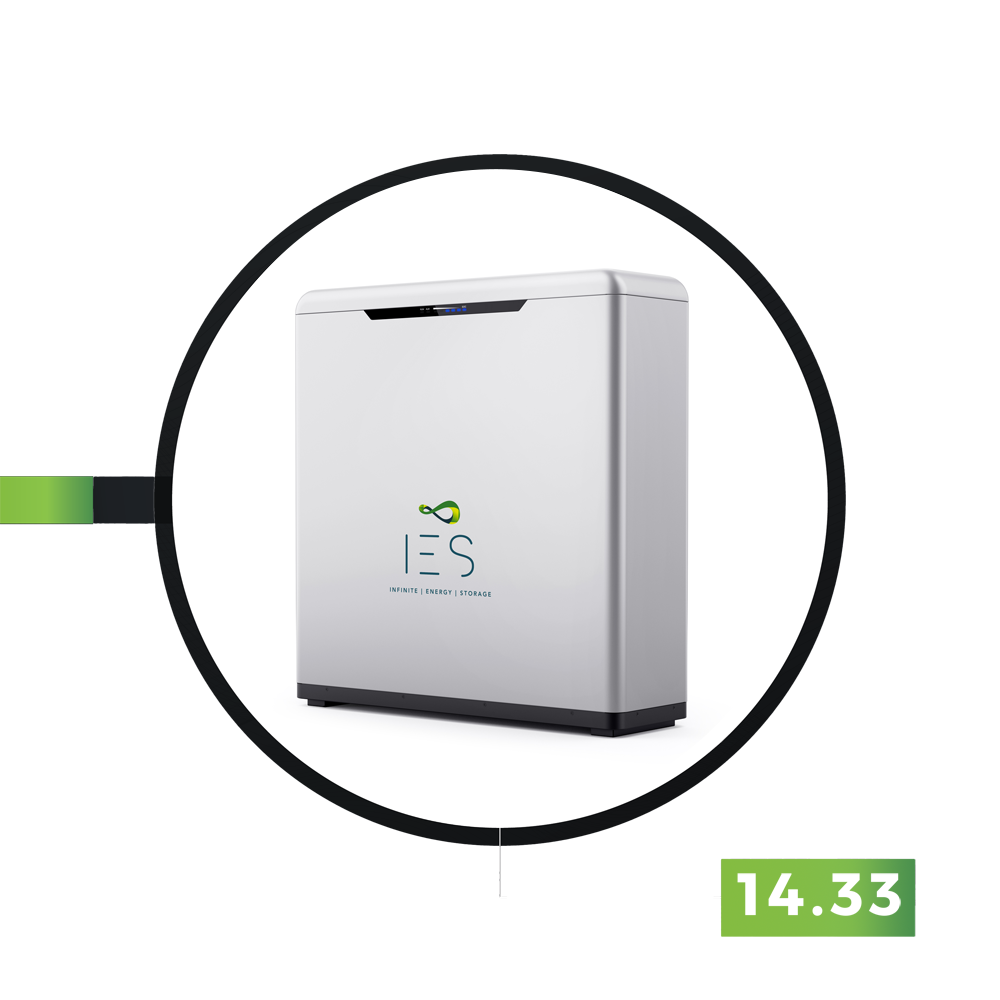

IES-BATT-14.33
[ easy installation ]
Deep cycle DOD control
Floor Stand or Wall mounted
Up to 15 units in parallel
Compatible with Major
PCS Brands
Premium Lithium Iron
Phosphate (LFP) 8000
cycles
One Button ON/OFF
Automatic ID Assignment
Datasheet
Installation Manual
SPECS
MODEL
IES-BATT-14.33
Performance
Call technology
LFP (LiFePO4)
Battery usable energy [1]
14.33 kWh
Nominal Voltage
51.2 V
Operating Voltage
44.8 – 56.16 V
Nominal Output Current
140 A / 280 A
BMS protection current
300 A, 1 S
Communication
Display
SOC status indicator, LED indicator
Communications
CAN / RS485 / RS232 / Wi-Fi (optional)
General Specefications
Dimensions (w*d*h)
800×250×839 mm
Weight
145 kg
Installation
Floor stand or Wall mounted
Operating Temperature [2]
-20 to 60 °C (-4 to 140 °F)
Environmental humidity
≤ 95%RH (no condensation)
Protection Rating
IP20
Cycle Life [3]
8000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
Scalability
Max 15 batteries in parallel
Application
ON Grid / ON Grid + Backup / OFF Grid
Compatible inverters
Refer to compatible inverter list (Compatible with major PCS brands)
Standard Compliance
Cell: UN38.3 / IEC62619 / UL 1642 / JET
Battery pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request)
Ordering and Deliverable Part
IES-BATT-14.33 Battery
Part
IES-BATT-14.33 Parallel cable
IES-BATT-14.33 to PCS cable
[1] Test conditions: 100% depth of discharge (DOD), 0.2C rate charge & discharge at 25°C.
[2] Charge/discharge derating occurs when the operating temperature from -10°C to 5°C & 45°C to 55°C.
[3] Please refer to the Warranty Letter for applicable conditions, the warranty is due whichever comes first.
