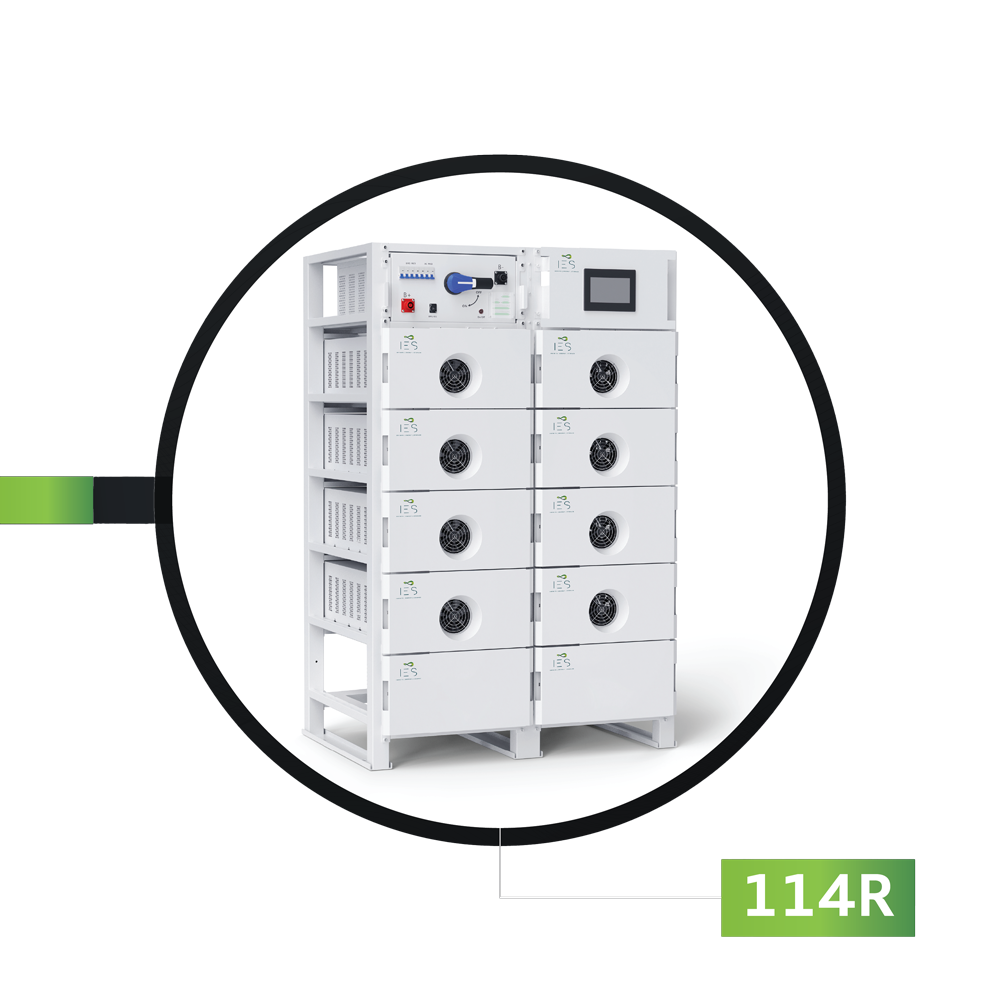

IES-BATT-114R
[ overview ]
[ easy installation and maintenance ]
[ safe & reliable ]
Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS
Local and remote management, standard rack & module design, front maintenance
Self-developed 2-level / 3-level BMS, multiple protection, safe and reliable
[ high density ]
[ long lifespan ]
[ cell balancing technology ]
High capacity LFP battery
Long cycle life, 8000 cycles*
Advanced cell balancing
Datasheet
Installation Manual
SPECS
MODEL
IES-BATT-114R
Performance
Battery Module (Wh/V)
14.336 kWh, 51.2 V, 110 kg
Number of modules
8
Call technology
LFP (LiFePO4)
Battery usable energy [1]
114.688 kWh
Nominal Voltage
409.6 V
Operating Voltage
358.4 – 449.28 V
Nominal Output Current
140 A / 280 A
Communication
Display
SOC status indicator, LED indicator, LCD display
Communications
Ethernet / CAN / RS458
General Specefications
Dimensions (w*d*h)
1164 x 840 x 1776 mm
Weight
1130 kg
Operating Temperature [2]
-20 to 60 °C
Environmental humidity
≤95%RH (no condensation)
Protection Rating
IP20
Cycle Life [3]
8000 Cycles or ten (10 years) @ 80% DOD / 25°C / 0.5C, 70% EOL
Scalability
Yes
Application
ON Grid / ON Grid + Backup / OFF Grid
Compatible PCS
Refer to compatible PCS list
Standard Compliance
Cell: UN38.3 / IEC62619 / UL 1642 / JET
Pack: UN38.3 / IEC62619 / IEC 61000
Ordering and Deliverable Part
IES-BATT-14.3P-F-QC
Part
IES-BCU-M-114H1-QC
lES-R12
[1] Test conditions: 100% depth of discharge (DOD), 0.2C rate charge & discharge at 25°C.
[2] Charge/discharge derating occurs when the operating temperature from -10°C to 5°C & 45°C to 55°C.
[3] Please refer to the Warranty Letter for applicable conditions, the warranty is due whichever comes first.
